Vero BMS V2 Wiring Harnesses

Additional wiring harnesses for the Vero BMS V2.

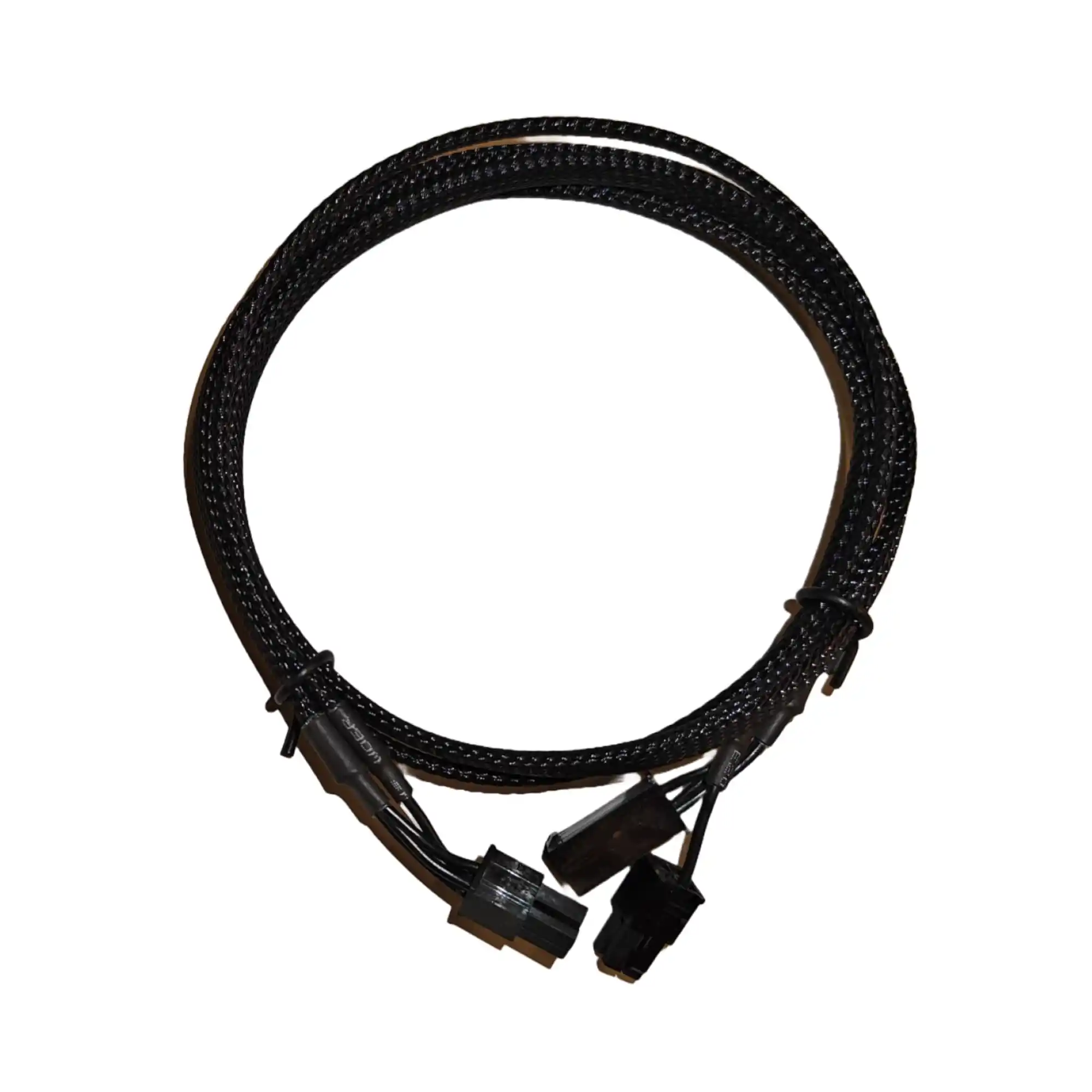

Component 1: From BMS is the component of the Modular BMS Wiring Harness that connects directly to connector J1 on the Vero BMS V2.

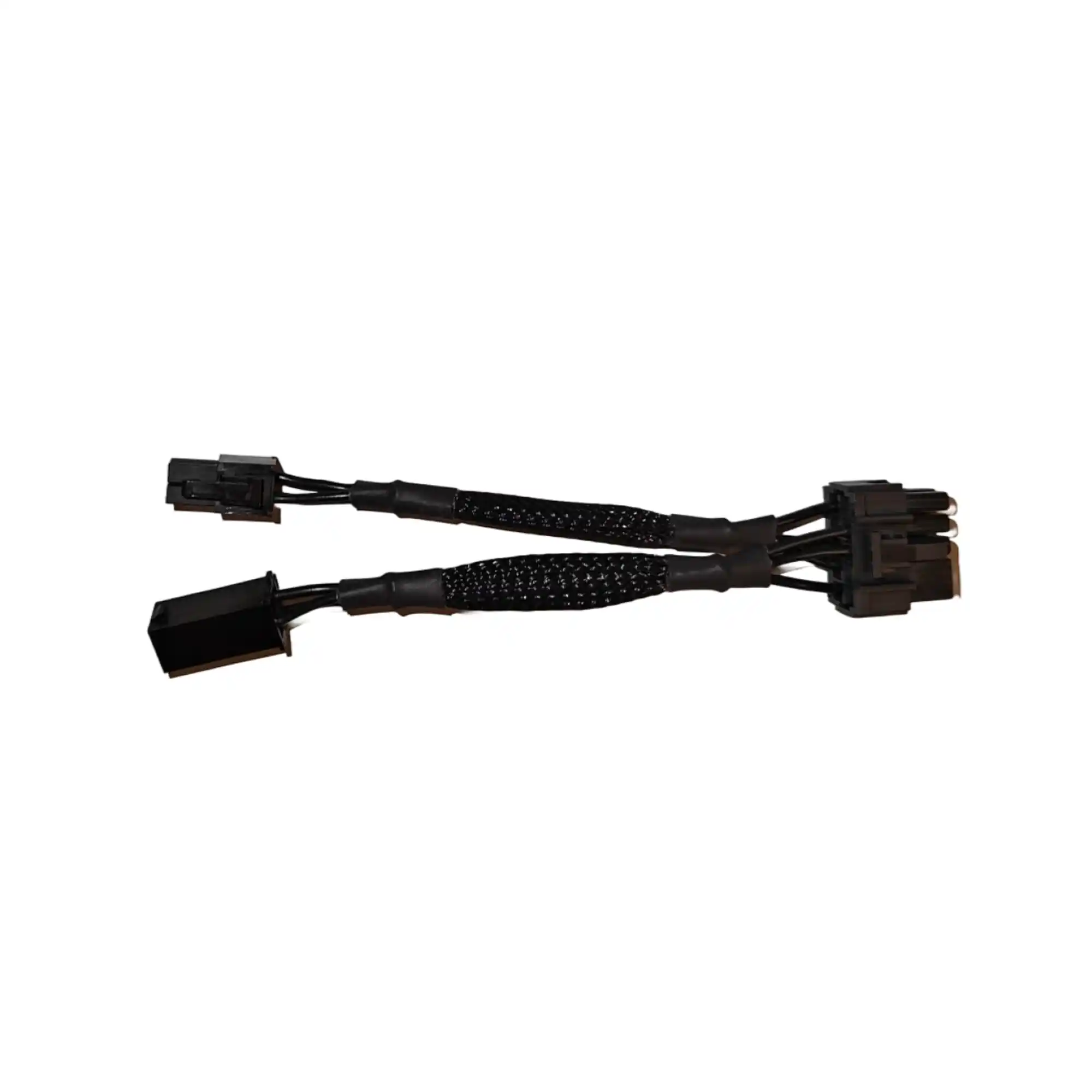

Component 2: Tesla Module is the component of the Modular Tesla Wiring Harness that connects to all of the Tesla S/X modules in your BMS wiring. Component 2 is designed for stacked modules without unnecessary slack, if your modules are side-by-side you will also need a Component 3 or Component 4 extender.

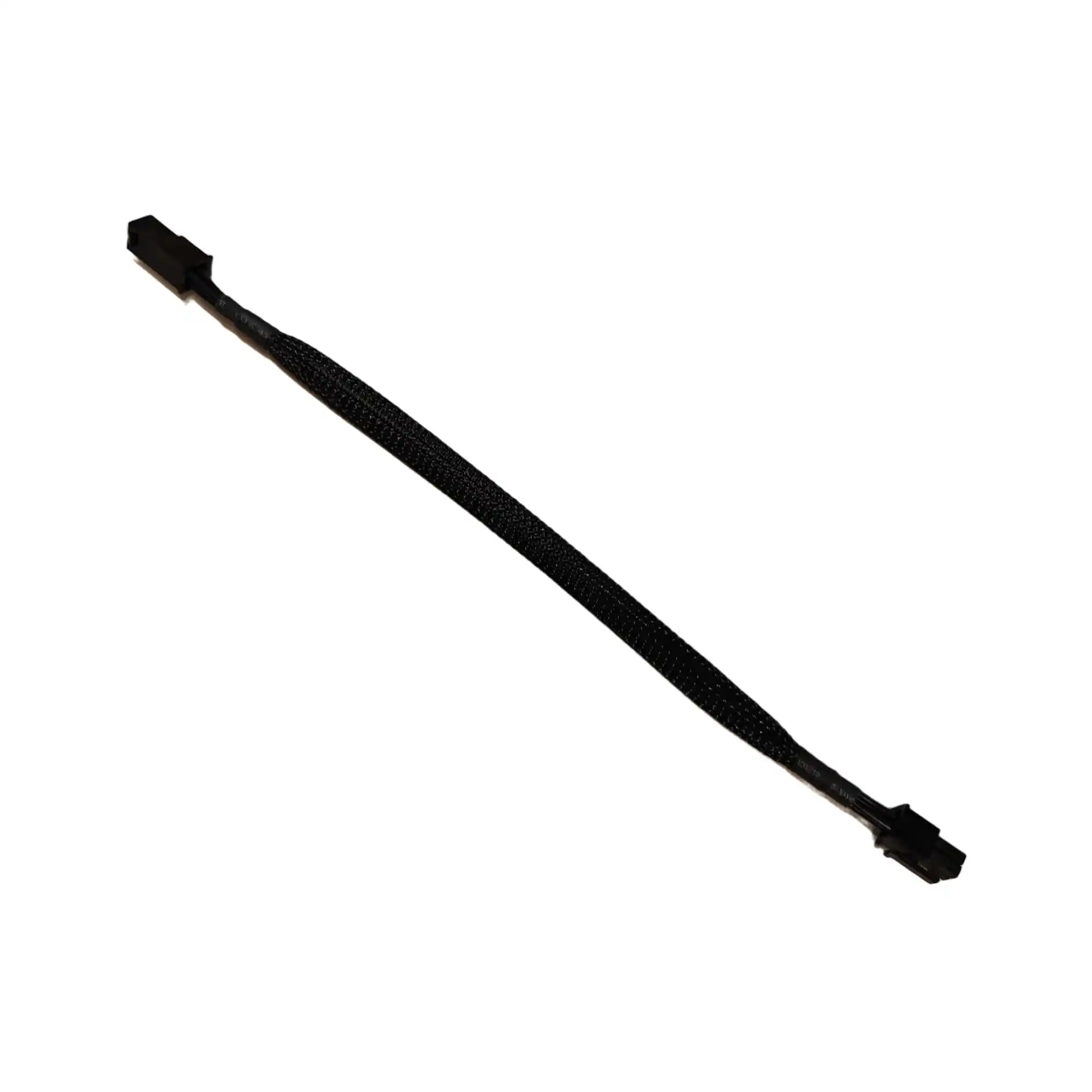

Component 3: 25cm Extender is an optional extender to extend BMS wiring to battery modules by 25cm. Multiple extenders can be connected end-to-end to span a greater distance.

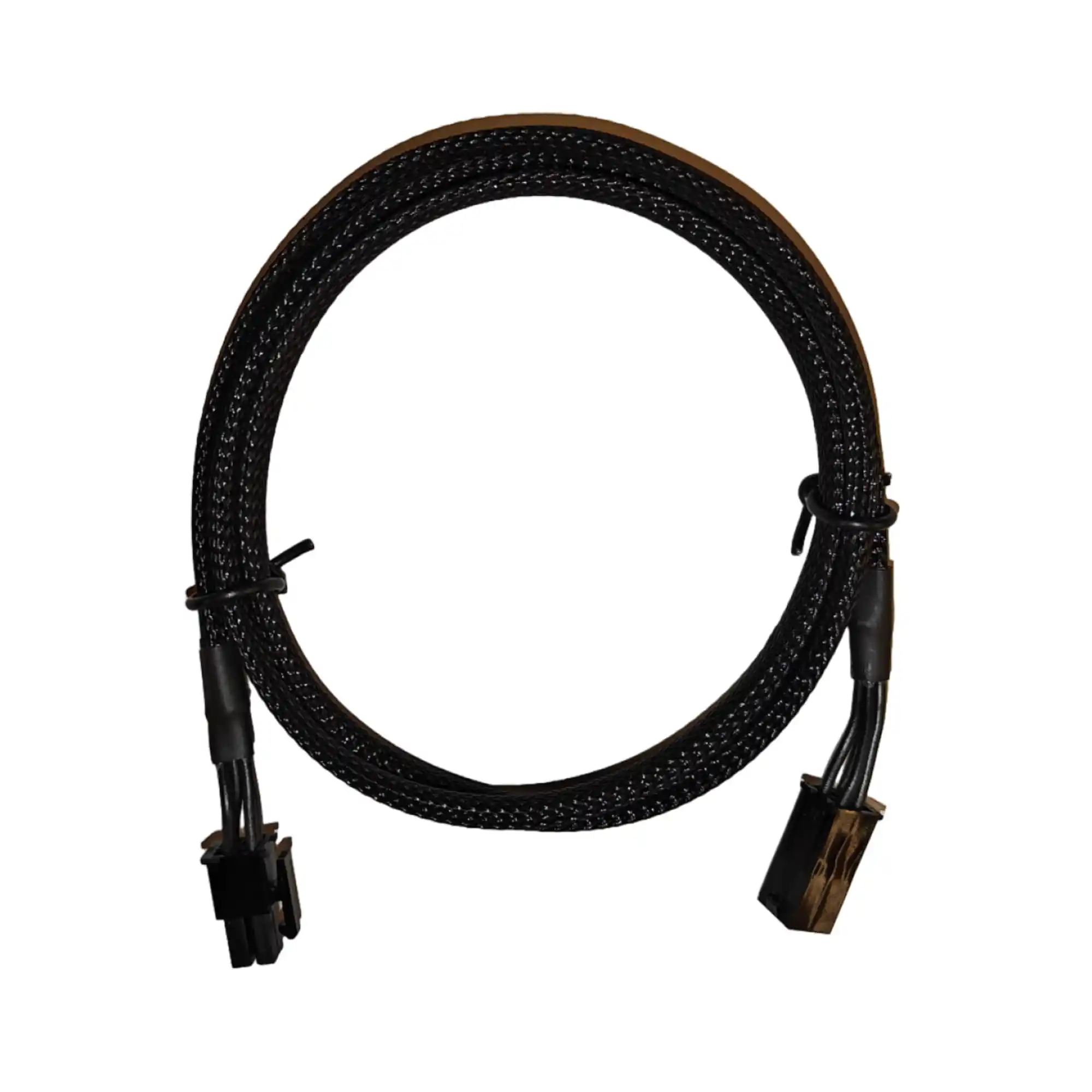

Component 4: 1m Extender is an optional component of the Modular BMS Wiring Harness to extend BMS wiring to battery modules by 1 meter. Multiple extenders can be connected end-to-end to span a greater distance.

Included with the Vero BMS V2:

• 1x Component 1: From BMS
• 4x Component 2: Tesla Module
