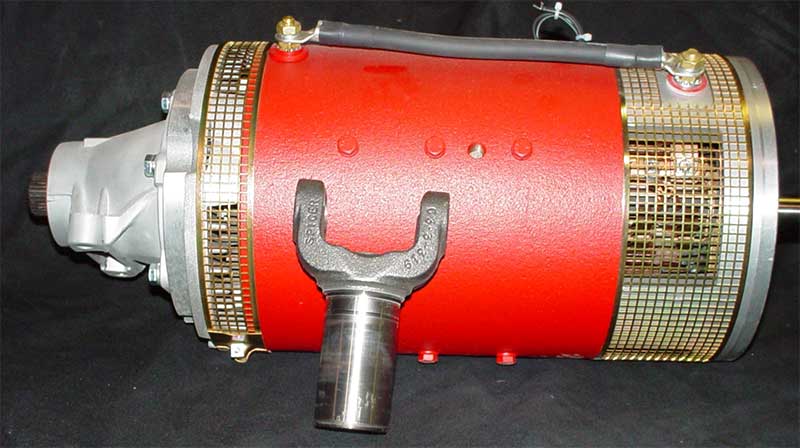

NetGain TransWarP Motor
HomeStore

NetGain TransWarP Motor

NetGain TransWarP Motor

Select Size
From $5,000.00
NetGain TransWarP Motor—
$5,000.00

The Story



*Contact us for availability / lead time

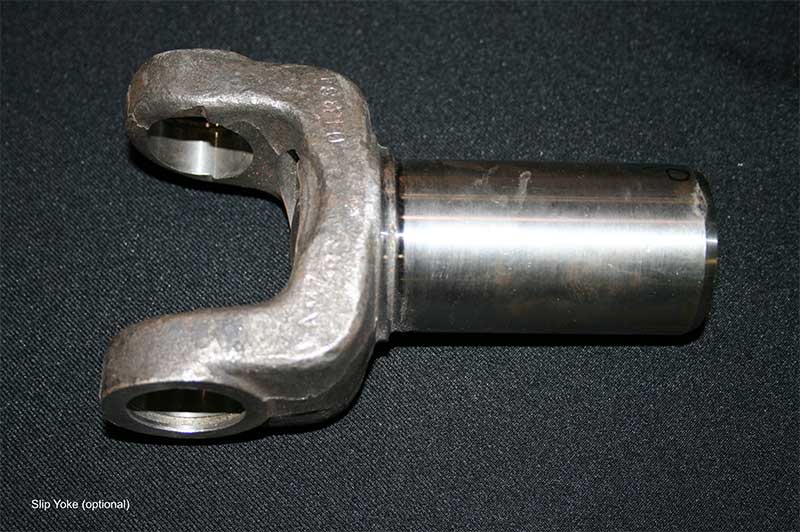

*Call to add Shorty Tail Shaft and/or Slip Yoke options.
*TransWarP 9 Motors have a lead time of approximately 5 months.

TransWarP 9

Type: Series wound DC
Diameter: 9.25”
Length: 15.922”
Weight: 156 lbs
HP: 32.3 (72 Volts, 335 Amps)
RPM: 5,500
Torque: 70 lbs.-ft.
Shaft: CE shaft 1.125” same as DE on WarP 9 - simplifies double motors!

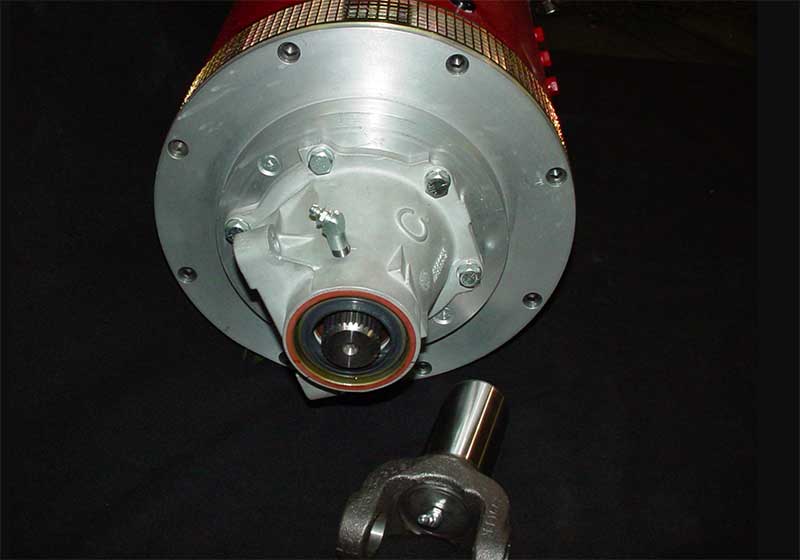

Timing: Double ended shaft - advanced timing, 1.125" CE Shaft, 1.375", 32-tooth spline – Accepts optional 1350 Slip Yoke and T400 Tail shaft housing.
Brushes: High quality, large style brushes, factory pre-seated to over 90%
Insulation: Exceeds Class “H” insulation for temperatures
Terminal Studs: 1/2”

TransWarP 9 Specifications (pdf)
TransWarP 11

Type: Series wound DC
Diameter: 11.45”
Length: 17.027”
Weight: 229 lbs
HP: 32 (Continuous @ 144V)
RPM: 5,800
Torque: 135 lbs.-ft. @ 450 Amps
Shaft: 1.125" single or dual
Timing: Favored or neutral (User selectable)
Brushes: Dual wafer Helwig Carbon Red top
Insulation: Class “H”
Terminal Studs: 1/2”
Fan: High efficiency 15 blade

TransWarP 11 Specifications (pdf)
