The Story

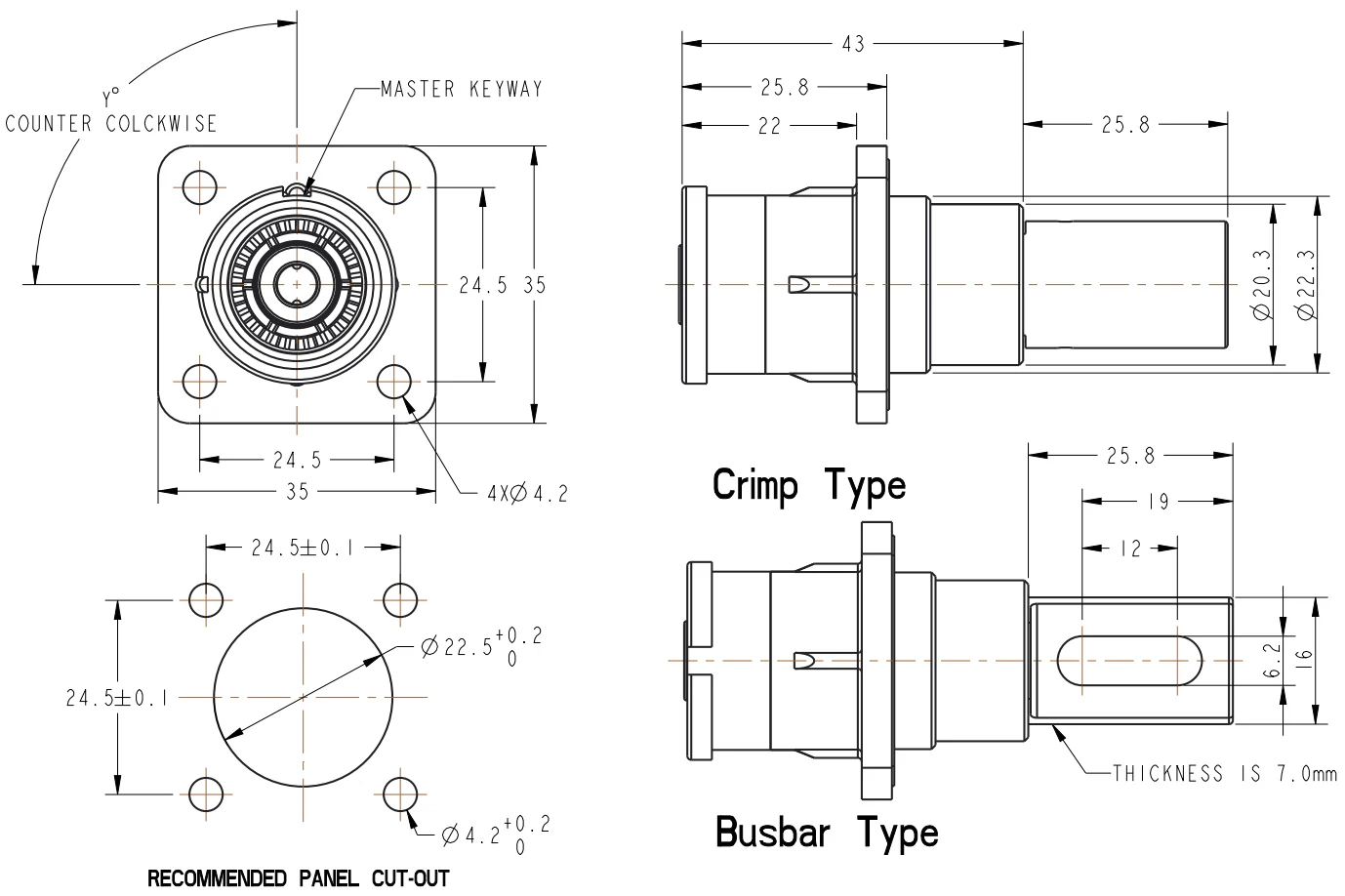

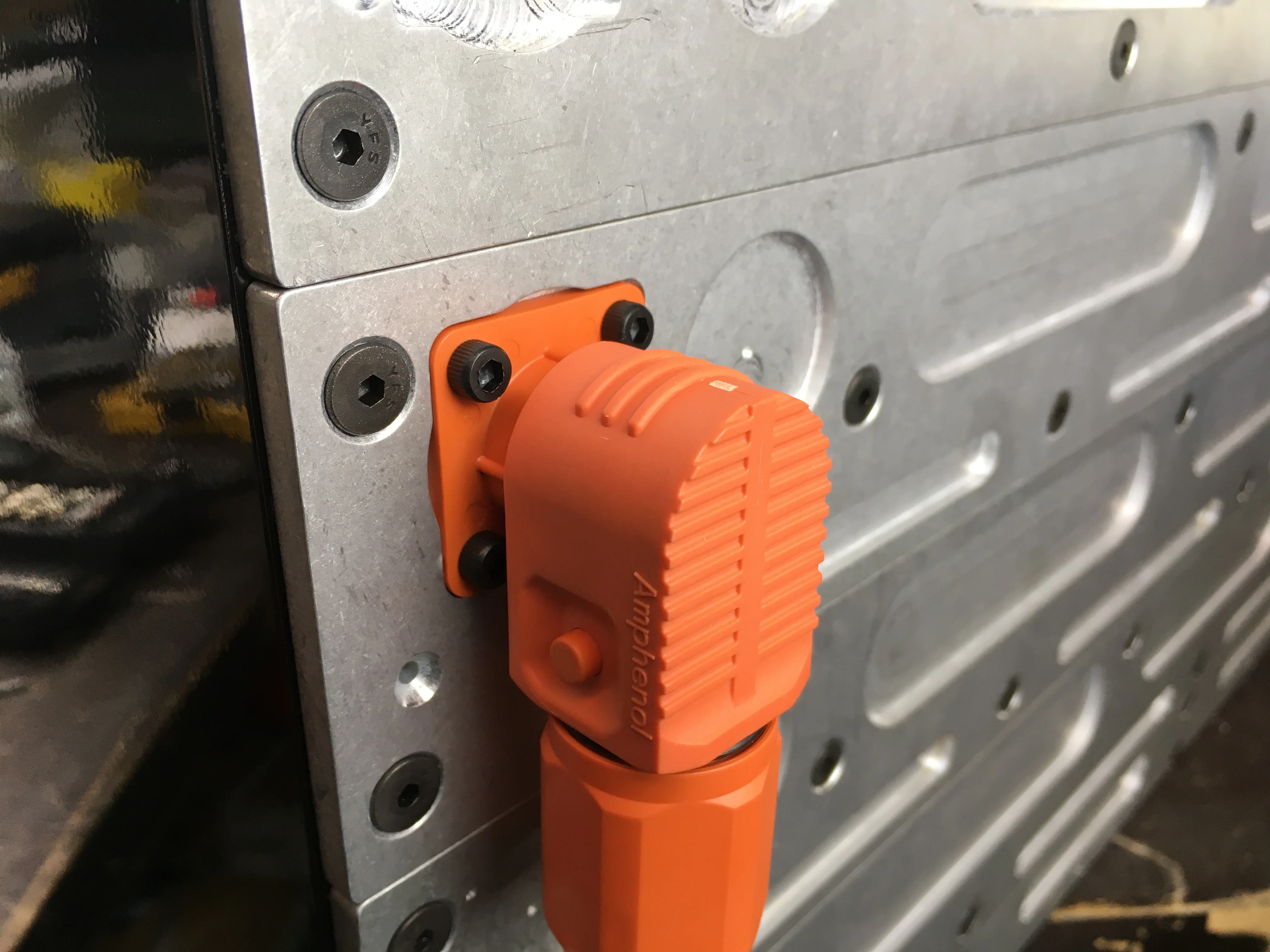

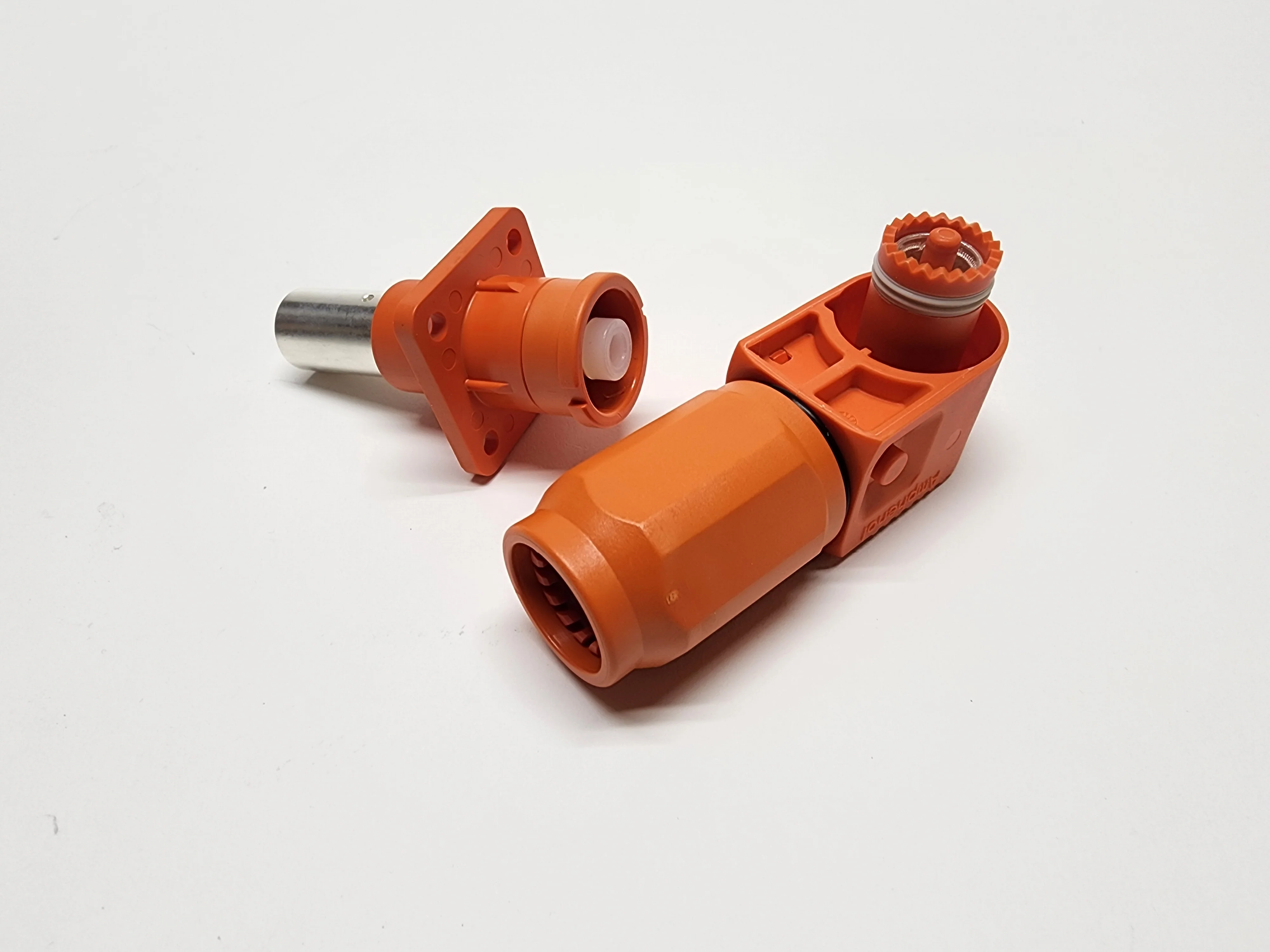

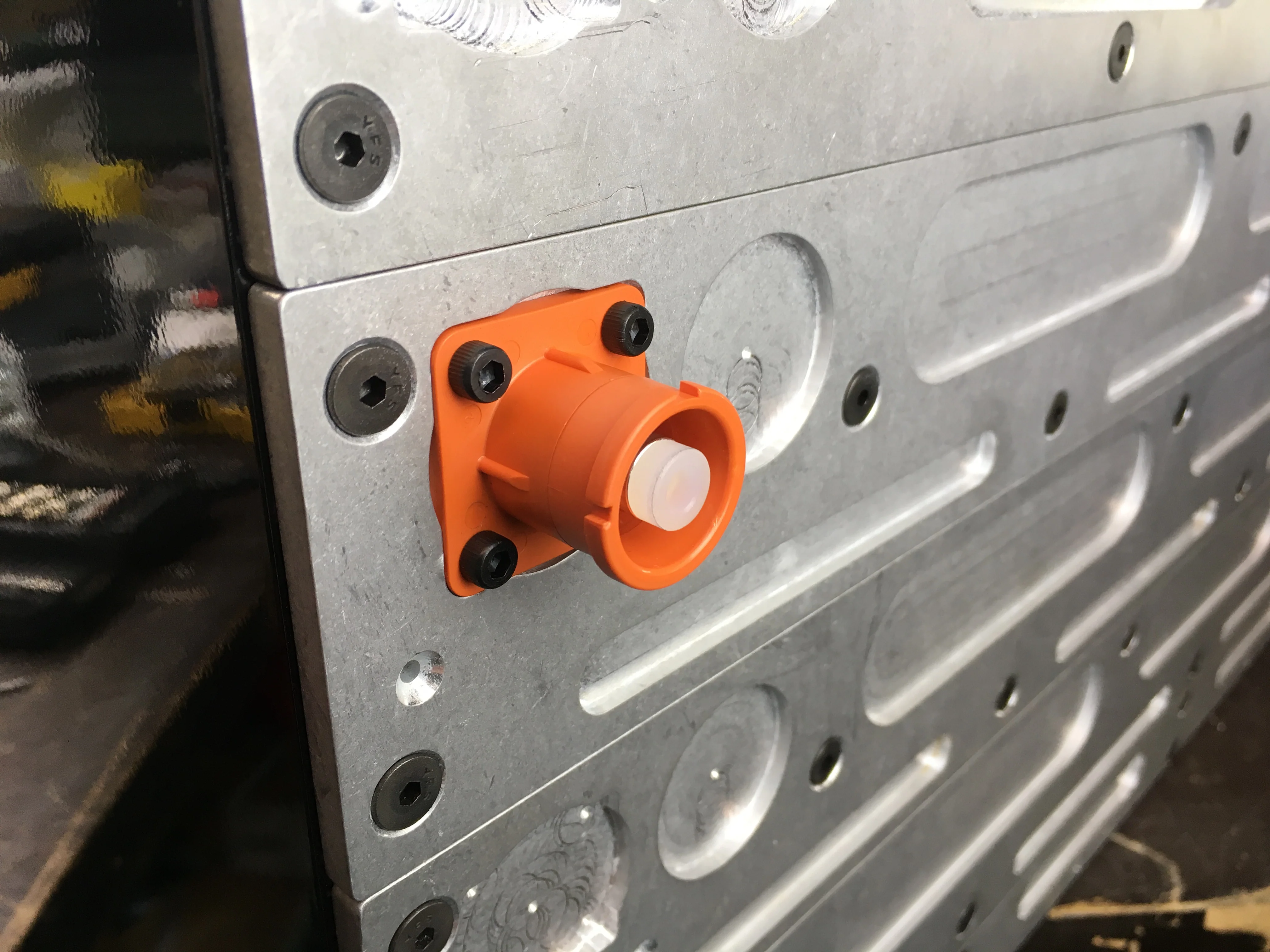

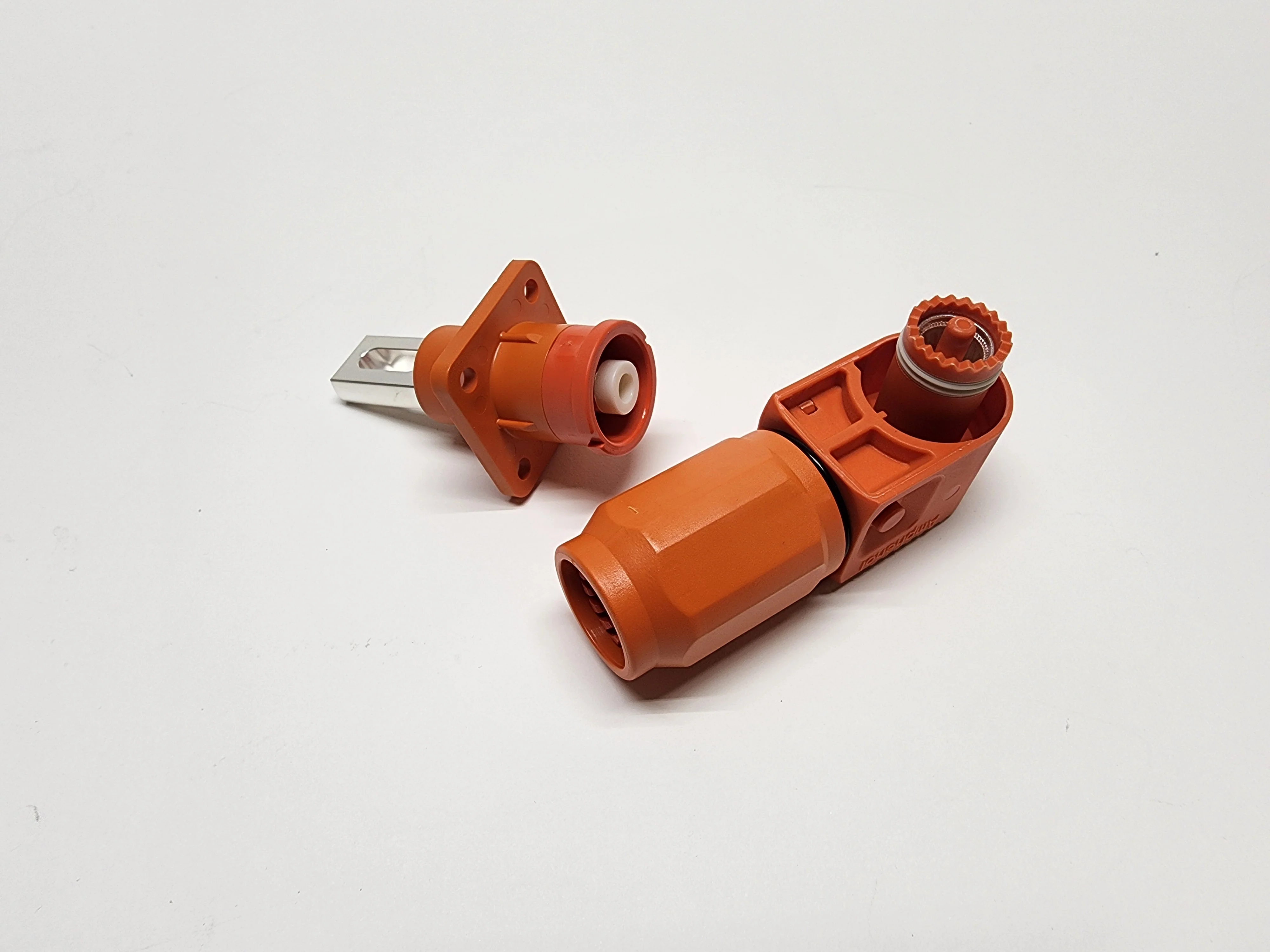

We now carry this sweet high voltage connector set from Amphenol - a real nice step up from the traditional Anderson connectors, and at a reasonable cost. Plugs use a crimp connection and receptacles are available with either crimp or busbars connections. The same crimp style connections you would use for cable lugs, so hydraulic crimper recommended. They feature a quick lock and press-to-release design and are a perfect fit when using our Modular Battery Box for Tesla Battery Modules. Available with 90° or 180° keying to ensure you can't mix up your connections.

Maximum wire gauge: 2/0 AWG

Current Rating: 350A

Voltage Rating: 1,000 V

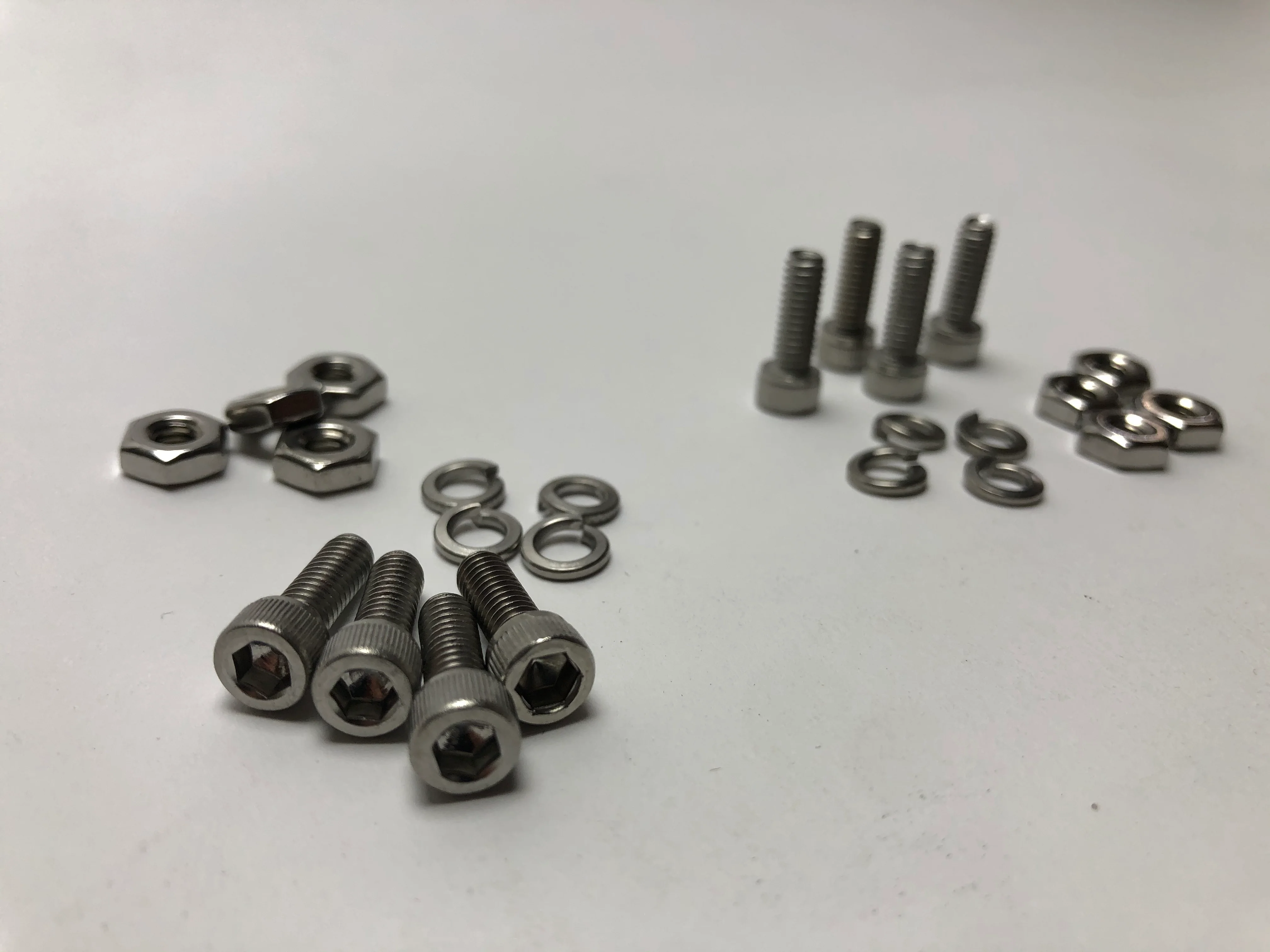

Stainless steel mounting hardware included.

Amphenol HV Crimp Procedure - Receptacle (pdf)

Amphenol HV Crimp Procedure - Plug (pdf)
